Durable Indoor Distribution Box / Stainless Steel Control Box Pad Mounted 600500200cm

Product Categories

Metal DB Box [11]
Electrical Distribution Box [10]
Stainless Steel Distribution Box [11]
Plastic Junction Box [31]
Lighting Distribution Board [10]
Indoor Distribution Box [16]
Stainless Steel Electrical Box [14]
Weatherproof DB Box [10]
ABS Junction Box [21]
Lighting Distribution Box [20]
Miniature Circuit Breaker [17]
Power Distribution Cabinet [7]

Zhejiang Guokong Electric Co., Ltd.

Contact Now

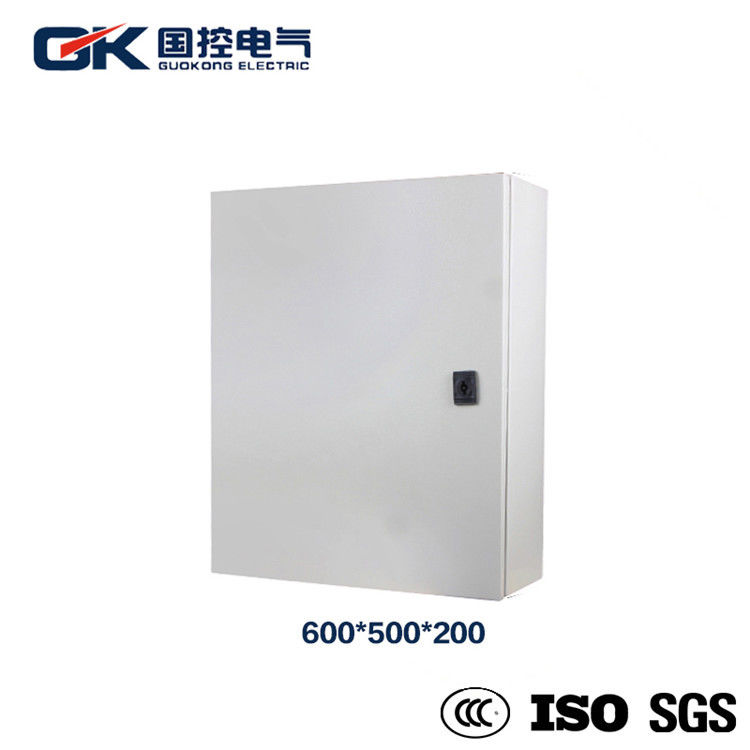

Durable Indoor Distribution Box / Stainless Steel Control Box Pad Mounted 600500200cm

Place of Origin : China

Brand Name : QK

Certification : RoHS, CE, UL,CCC,ISO9001

MOQ : 1 Piece

Payment Terms : T/T,L/C,Western Union

Price : Negotiation

Packaging Details : Regular export packing and can accept customized

Supply Ability : 1000 Pieces/month

Delivery Time : 5-8 work days

Model Number : JXF605020

Paint Finish : Epoxy Polyester Coating

Door : Single door

Ground wire : Yes

Technique : powder coating

Function : Waterproof Dustproof

Thickness : 1.0/1.2/1.5mm

Contact Now

Galvanized Plate Waterproof Sealing Strip JXF Distribution Box

JXF series base industry box (export) more than 30 kinds of specifications, the products all use cold rolled steel plate, the advanced production technology and the only and with advanced level of CNC fully automatic production line at home, the surface through epoxy resin electrostatic spraying treatment, beautiful and durable. The sealing strip of the box door is built in one time by the imported sealing strip casting machine. It has the advantages of dust-proof, rainwater infiltration and so on. There is a line hole under the box, with a line hole cover plate (the cover plate is equipped with a seal), the protection grade is up to IP65, the inside of the box is equipped with the installation floor, which can fit all kinds of electrical equipment and the door plate opens more than 90. Degree, turn flexibly.

Characteristic

Product name	Distribution box
Material	Sheet Steel
OEM	Offered
Package	1 Piece Per Carton
Certification	CE,CCC,ROHS,TUS
Paint Finish	Epoxy Polyester Coating
Lock	Available On Request
Thckness	1.2mm1.5mm1.5mm
Color	Ral7035
Accessories	Wall Mount Brackets To Be Offered Seperately

Standard	Overall Dimension
Standard	Height(mm)	Width(mm)	Depth(mm)	Thickness(mm)
JXF302515	300	250	150	1.0/1.0/1.0
JXF403015	400	300	150	1.0/1.2/1.2
JXF504015	500	400	150	1.0/1.2/1.2
JXF403020	400	300	200	1.0/1.2/1.2
JXF504020	500	400	200	1.0/1.2/1.2
JXF604020	600	400	200	1.0/1.2/1.2
JXF605020	600	500	200	1.2/1.5/1.5
JXF705020	700	500	200	1.2/1.5/1.5
JXF806020	800	600	200	1.2/1.5/1.5
JXF1008020	1000	800	200	1.5/1.5/2.0
JXF504025	500	400	250	1.0/1.2/1.2
JXF605025	600	500	250	1.2/1.5/1.5
JXF806025	800	600	250	1.2/1.5/1.5
JXF1008025	1000	800	250	1.5/2.0/2.0
JXF1008030	1000	800	300	1.5/2.0/2.0
JXF12010030	1200	1000	300	1.5/2.0/2.0

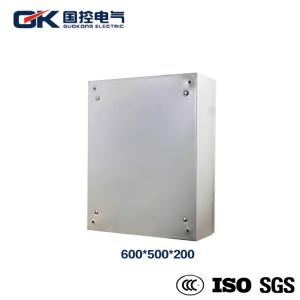

Durable Indoor Distribution Box / Stainless Steel Control Box Pad Mounted 600*500*200cm
