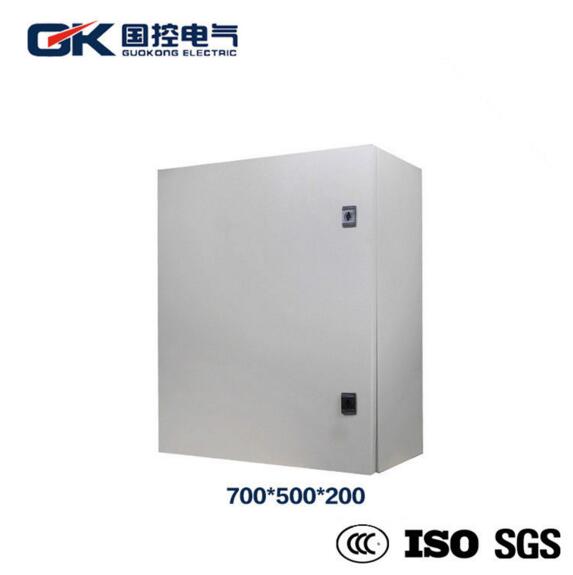

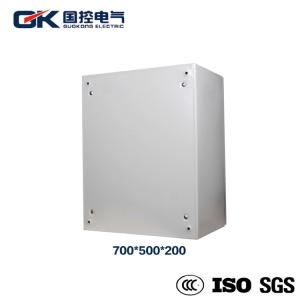

Various Dimension Indoor Distribution Box 240V Electrical Distribution Enclosures

Place of Origin : China

Brand Name : QK

Certification : RoHS, CE, UL,CCC,ISO9001

MOQ : 1 Piece

Payment Terms : T/T,L/C,Western Union

Price : Negotiation

Packaging Details : Regular export packing and can accept customized

Supply Ability : 1000 Pieces/month

Delivery Time : 5-8 work days

Model Number : JXF705020

Lock : Available On Request

Customization : Accept Enclosure Customized

Thickness : 1.0/1.2/1.5mm

Function : Waterproof Dustproof

Color : Ral7035

Delivery Date : 5-8 Work days

Contact Now

Variety of Dimension Weatherproof Epoxy Polyester Coating Indoor Distribution Box

Characteristic:

1. Fully automatic sealing strip casting machine

It has the advantages of rain proof, fire resistance, high temperature resistance, high strength, beautiful appearance and so on compared with the traditional paste sealing strip.

2. Flanged cap connections

The door panel can be swapped to the left and right. Compared with the traditional welding hinge, the door plate has the advantages of beautiful appearance, high strength, no soldering and breaking.

2. CNC automatic production line processing

The special winding process improves the compressive strength of the product, reduces the welding process and greatly improves the production efficiency (the output is more than 20 times that of the traditional mode of production).

Characteristic

Product name	Distribution box
Material	Sheet Steel
OEM	Offered
Package	1 Piece Per Carton
Certification	CE,CCC,ROHS,TUS
Paint Finish	Epoxy Polyester Coating
Lock	Available On Request
Thckness	1.2mm1.5mm1.5mm
Color	Ral7035
Accessories	Wall Mount Brackets To Be Offered Seperately

If you need specified product,please consult us.

Standard	Overall Dimension
Standard	Height(mm)	Width(mm)	Depth(mm)	Thickness(mm)
JXF302515	300	250	150	1.0/1.0/1.0
JXF403015	400	300	150	1.0/1.2/1.2
JXF504015	500	400	150	1.0/1.2/1.2
JXF403020	400	300	200	1.0/1.2/1.2
JXF504020	500	400	200	1.0/1.2/1.2
JXF604020	600	400	200	1.0/1.2/1.2
JXF605020	600	500	200	1.2/1.5/1.5
JXF705020	700	500	200	1.2/1.5/1.5
JXF806020	800	600	200	1.2/1.5/1.5
JXF1008020	1000	800	200	1.5/1.5/2.0
JXF504025	500	400	250	1.0/1.2/1.2
JXF605025	600	500	250	1.2/1.5/1.5
JXF806025	800	600	250	1.2/1.5/1.5
JXF1008025	1000	800	250	1.5/2.0/2.0
JXF1008030	1000	800	300	1.5/2.0/2.0
JXF12010030	1200	1000	300	1.5/2.0/2.0

Industrial 3 phase power distribution box
